Description

Model: OC220

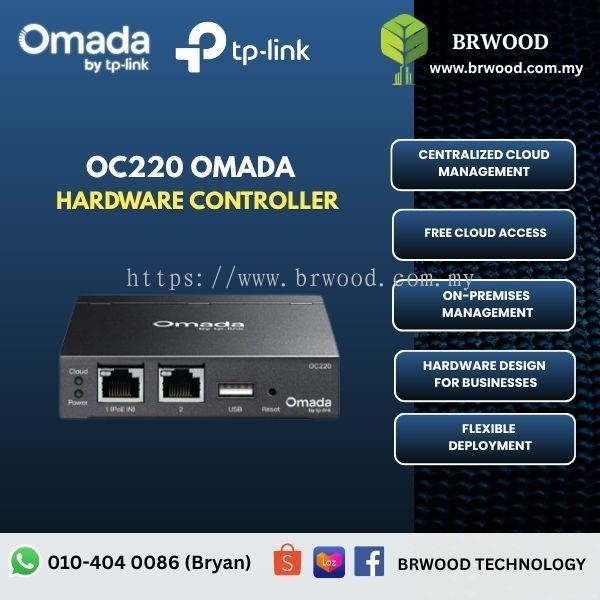

OMADA TP-LINK OC220: Hardware Controller

Key Features

Centralized Cloud Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs.*
Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
On-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy.
Hardware Design for Businesses: Features a powerful chipset, durable metal casing, USB 2.0 port for data backup, and 2× Gigabit Ethernet ports.
Flexible Deployment: Powerd via 802.3af/at PoE or Micro USB (DC 5 V / Minimum 1 A) with a compact desktop or wall mount installation.

HARDWARE FEATURES
Processor	Quad-Core A53 @ 2.0 GHz/Core
Interface	• 2× Gigabit Ethernet Ports • 1× USB 2.0 Port • 1× Micro-USB Port (only for power supply)
Physical Security Lock	Kensington Lock
Button	Reset Button
Power Supply	• 802.3af/at PoE • Micro-USB (DC 5 V / Minimum 1 A)
Max. Power Consumption	11.2 W (powered by a PoE device, with USB 2.0 connected) 3.5 W (powered via Micro-USB port, no USB 2.0 connected)
DRAM	2 GB DDR4
Storage	• 4MB Nor Flash • 8 GB eMMC
Weight	0.305 kg
Dimensions ( W x D x H )	3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

Management Features
Omada App	√
Restore & Backup	√
Centralized Management	• 100 Omada access points • 10 Omada gateways • A maximum of 20 Omada switches* • A maximum of two select DeltaStream GPON OLTs*
Cloud Access	√
L3 Management	√
Multi-site Management	√
Management Features	• Wired Network • Wireless Network • WLAN Optimization • Network Security (ACL/URL Fitering/Attack Defense) • Transmission (Routing/NAT/Session Limit/Bandwidth Control) • VPN (IPSec/L2TP/PPTP/OpenVPN/WireGuard VPN) • Portal (Voucher/Local User/SMS/RADIUS/External Portal Server) • 802.1x • RADIUS (Authentication/MAC Auth/Accounting)

MONITORING
Monitoring	• DPI • IPS/IDS • Dashboard (Custom Dashboard) • Statistics (Performance/Switch Statistics) • Network topology • Network Map • Devices List (Custom Table) • Clients List (Custom Table) • Insights (Known Clients/Past Connections/Past Portal Authorizations/Rogue APs) • Logs (Alerts/Events/Custom Notifications)

OTHERS
Certification	CE, FCC, RoHS
Package Content	• Omada Hardware Controller OC220 • Quick Installation Guide • RJ45 Ethernet Cable
System Requirements	Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment	• Operating Temperature: -5–50 ℃ (23–122 ! ) • Storage Temperature: -40–70 ℃ (-40–158 ! ) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
