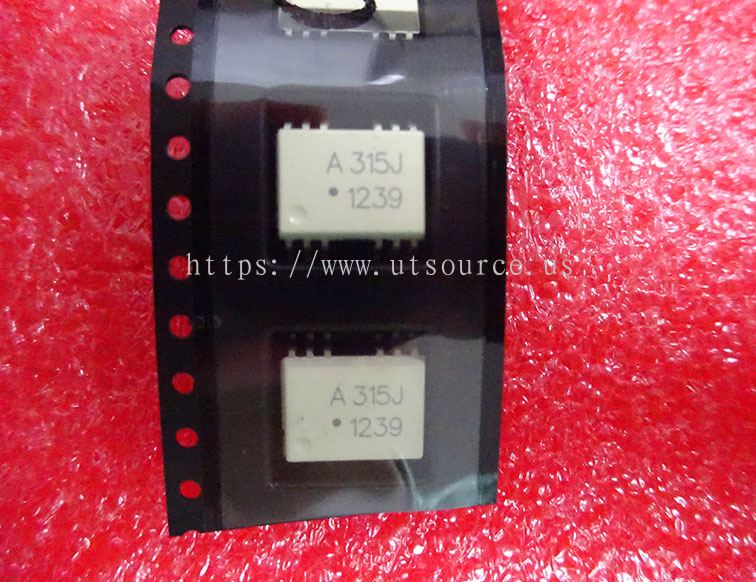

HCPL-315J-500E: 马来西亚的首选 Utsource Holding Company Limited

详情

Parameter	Symbol	Conditions	Min	Typ	Max	Unit
Forward Voltage	VF	IF = 20 mA		1.2	1.5	V
Reverse Breakdown Voltage	VBR	IR = 1 μA	5			V
Forward Current	IF	Continuous		50		mA
Peak Pulse Current	IFP	t = 10 ms, duty cycle ≤ 1%		150		mA
Storage Temperature Range	Tstg		-40		85	°C
Operating Temperature Range	Topr		-40		85	°C
Isolation Voltage	VIORM	Test condition: 1 minute, 50/60 Hz		5000		Vrms
Propagation Delay Time	tPLH, tPHL	VDD = 5V, IF = 20mA		35		ns
CTR (Current Transfer Ratio)	CTR	IF = 5mA, VCE = 5V	100		300	%

Installation and Handling:
- Handle with care to avoid damage to the leads or body.
- Ensure proper alignment of the device during soldering.
Operating Conditions:
- Operate within specified temperature ranges to ensure reliable performance.
- Do not exceed the maximum ratings for forward current, reverse breakdown voltage, and isolation voltage.
Electrical Connections:
- Verify correct polarity when connecting the device to avoid damage.
- Use appropriate PCB layout techniques to minimize noise and interference.
Testing and Measurement:
- When testing propagation delay and current transfer ratio, use specified test conditions to obtain accurate results.
Storage:
- Store in a dry, cool place away from direct sunlight.
- Follow anti-static precautions to protect against ESD damage.
Safety Considerations:
- Always follow safety guidelines when working with high voltages.
- Ensure adequate ventilation if soldering is required.

(For reference only)
