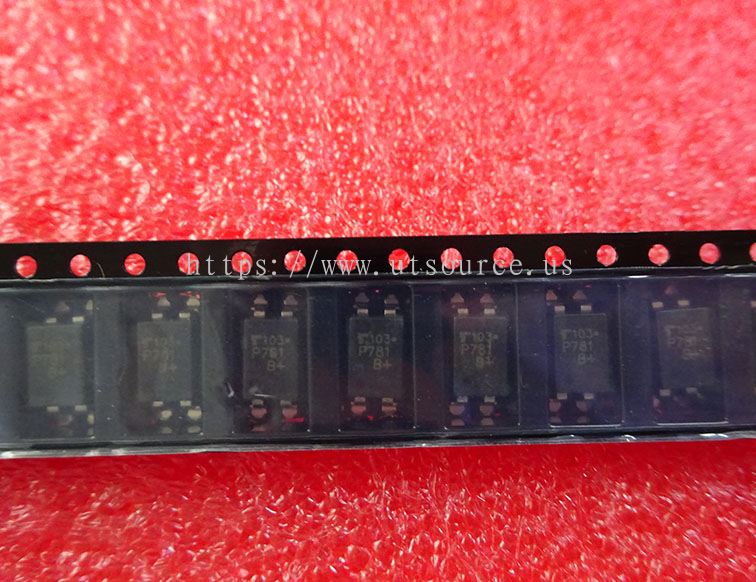

BUY TLP781(D4-Y-TP6F) https://www.utsource.net/itm/p/5854395.html
NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,5KV ISOLATION,DIP
Description:
The TLP781(D4-Y-TP6F) is a 4-pin surface mount SOP (Small Outline Package) optocoupler from Toshiba America Electronic Components. It is a high-speed, high-sensitivity, high-isolation optocoupler with a built-in photo-transistor.
Features:
High-speed response (tPHL/tPLH = 0.8/1.2 μs max.)
High-sensitivity (Ift = 0.5 mA max.)
High-isolation voltage (Viso = 5 kVrms)
Low-input current (Ii = 5 mA max.)
Low-output saturation voltage (Vce(sat) = 0.2 V max.)
Low-power consumption (Po = 100 mW max.)
RoHS compliant
Applications:
The TLP781(D4-Y-TP6F) is suitable for applications such as power supply control, motor control, signal transmission, and isolation of digital circuits. It can be used in a wide variety of industrial, consumer, and commercial applications.
(For reference only)
