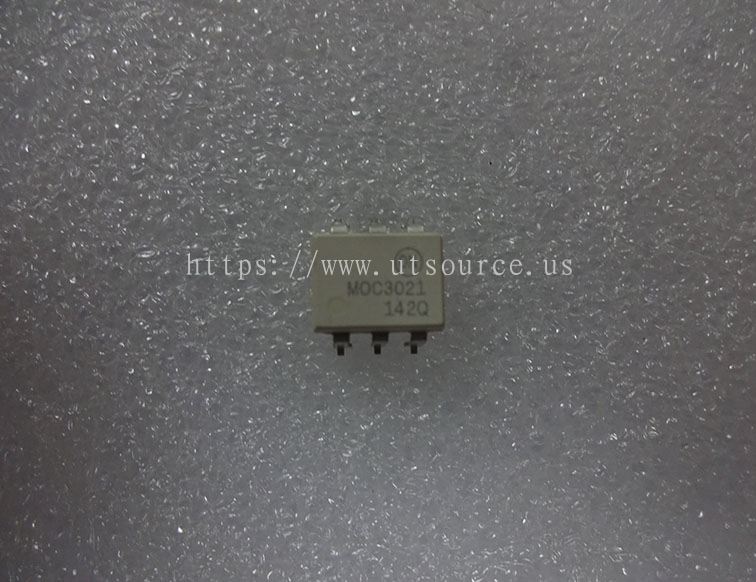

MOC3021SM-: 马来西亚的首选 Utsource Holding Company Limited

详情

Parameter	Symbol	Conditions	Min	Typical	Max	Unit
Forward Voltage	V_F	IF = 20mA	1.1	-	1.5	V
Reverse Breakdown Voltage	V_BR	IR = 1mA	600	-	-	V
Peak Forward Surge Current	I_FSM	t = 10ms, Repetition Rate = 1/s	-	-	200	mA
Zero Cross Detection	-	V_M = 18V, R_L = 1kΩ	0.7	-	1.4	V
Turn-On Time	t_on	V_I = 5V, I_I = 20mA	-	4	6	μs
Turn-Off Time	t_off	V_I = 0V, I_I = 20mA	-	1	2	μs
Storage Temperature	T_STG	-	-40	-	105	°C
Operating Temperature	T_OP	-	-40	-	85	°C

Handling Precautions:
- Avoid exposing the device to high temperatures or excessive humidity.
- Use proper ESD (Electrostatic Discharge) protection when handling the device.
Mounting:
- Ensure the device is soldered within the recommended temperature and time limits.
- Use a heat sink if necessary to prevent overheating during soldering.
Circuit Design:
- Connect the device according to the specified pin configuration.
- Ensure the load current does not exceed the maximum ratings.
- Use appropriate snubber circuits to protect against voltage spikes.
Testing:
- Test the device under controlled conditions to ensure it meets the specified parameters.
- Verify zero-cross detection functionality if used in applications requiring it.
Storage:
- Store the device in a dry, cool place away from direct sunlight.
- Keep the device in its original packaging until ready for use.
Disposal:
- Dispose of the device according to local environmental regulations.
- Do not incinerate the device as it may release harmful substances.

(For reference only)
