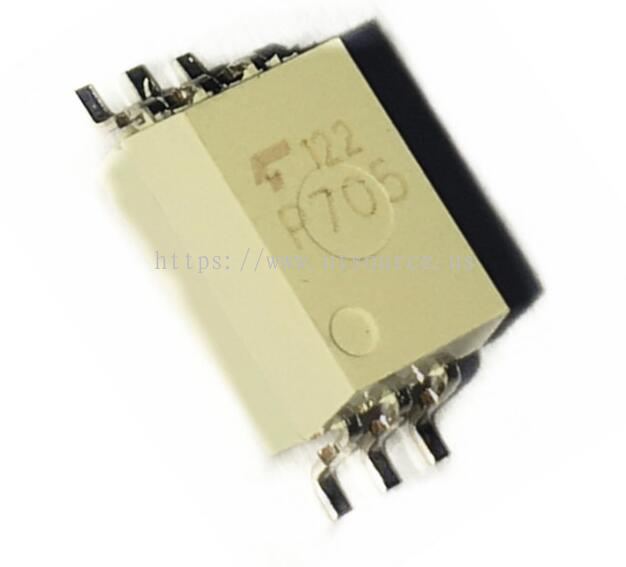

TLP705(TP,F): 马来西亚的首选 Utsource Holding Company Limited

详情

Parameter	Symbol	Min	Typ	Max	Unit	Conditions
Forward Voltage	V_F	-	1.2	1.6	V	IF = 10 mA
Peak Reverse Voltage	V_RRM	5	-	7	V
Continuous Forward Current	I_F	-	10	20	mA
Peak Pulse Forward Current	I_FPM	-	50	100	mA	t < 1 ms
Output High Voltage	V_OH	-	4.5	5.5	V	I_O = -4 mA, V_I = 5 V
Output Low Voltage	V_OL	0	0.4	0.8	V	I_O = 16 mA, V_I = 5 V
Propagation Delay Time	t_PLH, t_PHL	-	300	500	ns	V_I = 5 V, I_O = ±16 mA
Rise Time	t_r	-	200	300	ns	V_I = 5 V, I_O = ±16 mA
Fall Time	t_f	-	200	300	ns	V_I = 5 V, I_O = ±16 mA
Isolation Voltage	V_IORM	2.5	-	5.0	kV	1 min, 50/60 Hz
Operating Temperature	T_A	-40	-	105	°C
Storage Temperature	T_STG	-40	-	125	°C

Forward Voltage (V_F): Ensure the forward voltage is within the specified range to avoid damage to the device.
Peak Reverse Voltage (V_RRM): Do not exceed the peak reverse voltage to prevent breakdown.
Continuous Forward Current (I_F): The device should not operate continuously above the maximum continuous forward current.
Peak Pulse Forward Current (I_FPM): For short pulses, the peak pulse forward current can be higher but should not exceed the maximum value.
Output High and Low Voltages (V_OH, V_OL): These parameters define the output levels when the device is in high and low states.
Propagation Delay Time (t_PLH, t_PHL): These times indicate the delay between input and output transitions.
Rise and Fall Times (t_r, t_f): These parameters specify the time it takes for the output to transition from low to high or high to low.
Isolation Voltage (V_IORM): Ensure the isolation voltage is not exceeded to maintain electrical isolation.
Operating and Storage Temperatures (T_A, T_STG): Operate and store the device within the specified temperature ranges to ensure reliability.

ESD Protection: Handle the device with care to avoid electrostatic discharge (ESD).
Mounting: Ensure proper mounting to avoid mechanical stress on the leads.
Heat Dissipation: Consider heat dissipation if operating at high currents or temperatures.
Environmental Conditions: Protect the device from moisture and corrosive environments.

(For reference only)
