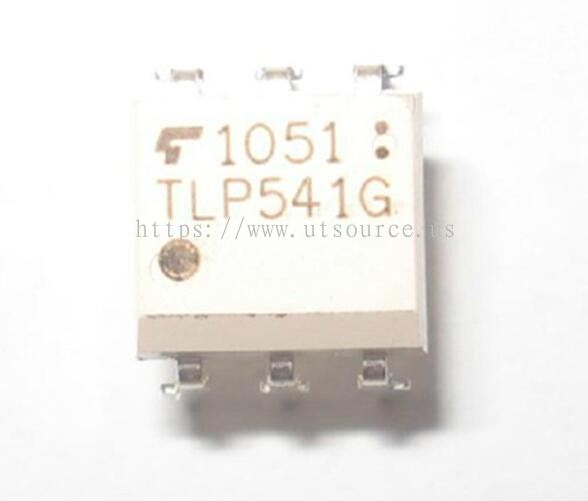

BUY TLP541G(N,F) https://www.utsource.net/itm/p/5301920.html
Triac & SCR Output Optocouplers 400Vdrm 2500Vrms Low trigger current

Parameter	Symbol	Min	Typ	Max	Unit	Conditions
Forward Voltage	V_F	-	1.2	1.6	V	IF = 10 mA
Reverse Voltage	V_R	-	-	5	V
Peak Forward Current	I_FPM	-	-	30	mA	t = 10 μs
Continuous Forward Current	I_F	-	-	10	mA
Output Collector-Emitter Voltage	V<subCEO	-	-	30	V	IO = 0 mA
Output Collector Current	I_C	-	-	10	mA	V_CE = 5 V
Output Turn-On Time	t_on	-	3	5	μs	IF = 5 mA, V_CE = 5 V, RL = 1 kΩ
Output Turn-Off Time	t_off	-	1	3	μs	IF = 5 mA, V_CE = 5 V, RL = 1 kΩ
Isolation Voltage	V_IORM	-	-	2500	V_rms	1 min, 50/60 Hz
Operating Temperature	T_A	-40	-	85	°C
Storage Temperature	T_STG	-40	-	100	°C

Mounting and Handling:
- Handle the TLP541G with care to avoid damage.
- Ensure proper heat dissipation if used in high current applications.
Electrical Connections:
- Connect the input (anode and cathode) to the control circuit.
- Connect the output (collector and emitter) to the load circuit.
- Ensure the correct polarity is maintained to prevent reverse voltage damage.
Thermal Management:
- If operating at or near the maximum continuous forward current, consider using a heatsink to maintain safe operating temperatures.
Isolation:
- The device provides galvanic isolation between the input and output circuits. Ensure that the isolation voltage ratings are not exceeded.
Timing Considerations:
- Account for the turn-on and turn-off times when designing the circuit to ensure reliable operation.
Storage and Operation:
- Store the device in a dry, cool place to prevent moisture damage.
- Operate within the specified temperature ranges to avoid thermal stress and potential failure.
Testing:
- Before final assembly, test the device under controlled conditions to verify its performance and reliability.
Compliance:
- Ensure that the device complies with all relevant safety and regulatory standards for your application.

(For reference only)
