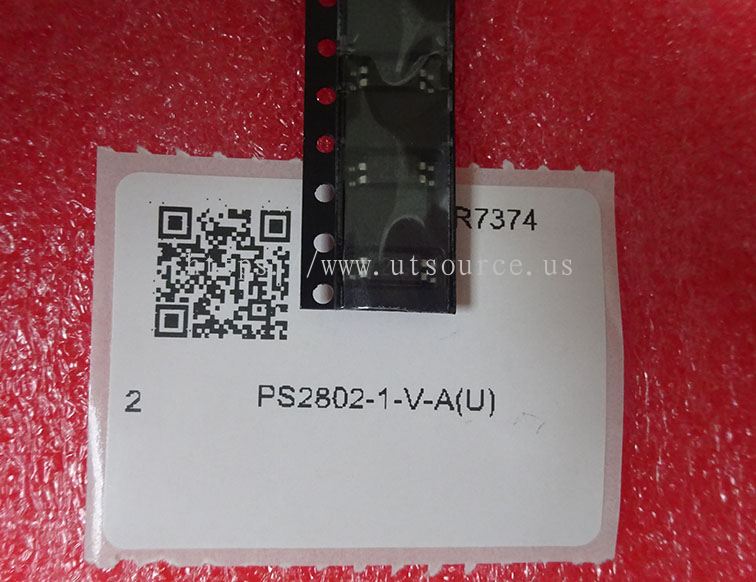

PS2802-1-V-A
PS2802-1-V-A



PS2802-1-V-A

Utsource Holding Company Limited flag
Category: Available (Qty:9999999)
For more information, visit our official website at utsource.us
Visit Official Site Contact Us
Description

BUY PS2802-1-V-A https://www.utsource.net/itm/p/9771944.html

Parameter Description Value
Part Number Product identifier PS2802-1-V-A
Type Optocoupler type Digital Optocoupler
Input Device Light Emitting Diode (LED) GaAs
Output Device Phototransistor Silicon NPN
Isolation Voltage Maximum peak isolation voltage 5300 Vrms
Forward Current Maximum forward current of LED 70 mA
Peak Forward Current Maximum peak forward current of LED 1 A
Reverse Voltage Maximum reverse voltage across LED 5 V
Collector-Emitter Voltage Maximum voltage between collector and emitter 70 V
Collector Current Maximum collector current 50 mA
Operating Temperature Operating temperature range -40°C to +110°C
Storage Temperature Storage temperature range -65°C to +150°C
Package Encapsulation type SOP-4

Instructions for Use:

  1. Power Supply: Ensure the power supply is within the specified limits to avoid damaging the device.
  2. Installation: Handle with care to prevent damage to leads or body. Follow standard anti-static precautions.
  3. Soldering: Preheat components if necessary, and use a controlled soldering process not exceeding 260°C for 10 seconds.
  4. Testing: Test the device in accordance with manufacturer guidelines to ensure proper functionality.
  5. Storage: Store in a dry, cool place away from direct sunlight and corrosive substances.
  6. Handling: Avoid excessive mechanical stress on the leads during handling and assembly.
  7. Application: Suitable for applications requiring reliable signal isolation, such as industrial controls, communication equipment, and consumer electronics.
(For reference only)
