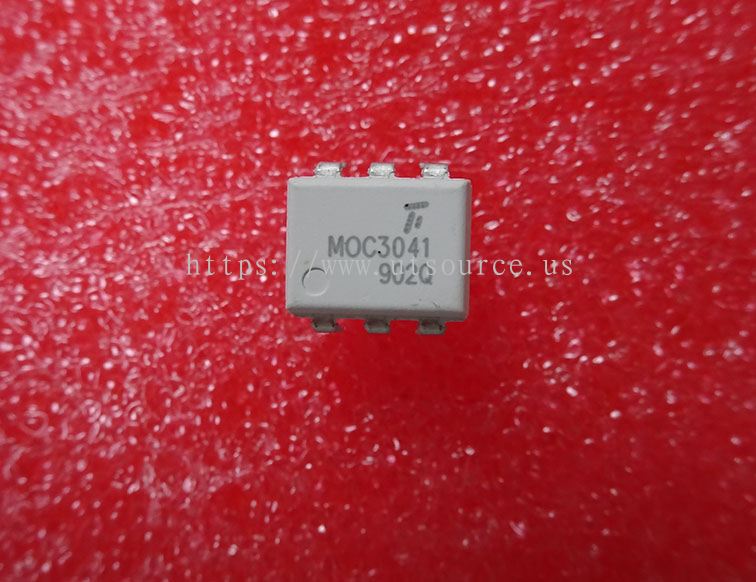

MOC3041M

BUY MOC3041M https://www.utsource.net/itm/p/821200.html
Optocoupler Triac AC-OUT 1-CH 400V 6-Pin PDIP Tube

Instructions for Using MOC3041M:

1. Forward Voltage (V_F):

   • Ensure that the forward voltage across the device does not exceed the maximum rating to avoid damage.
   • Typically, the forward voltage is around 1.3V at 20mA.

2. Reverse Breakdown Voltage (V_BR):

   • The device can withstand reverse voltages up to 700V. However, it is recommended to operate within the typical range of 500V to ensure reliability.

3. Peak Reverse Voltage (V_PRM):

   • For non-repetitive conditions, the peak reverse voltage should not exceed 600V.

4. Forward Current (I_F):

   • The continuous forward current should be kept below 30mA to prevent overheating and potential damage.
   • The typical operating current is 20mA.

5. Peak Forward Current (I_FPM):

   • For short pulses (1ms, 10 cycles), the peak forward current can reach up to 100mA.

6. Output Trigger Current (I_T(on)):

   • The output will trigger when the input current exceeds 5mA. The typical trigger current is 15mA, with a maximum of 30mA.

7. Output Holding Current (I_H):

   • To maintain the output state, the holding current should be at least 5mA. The typical holding current is 10mA, with a maximum of 15mA.

8. Isolation Voltage (V_IORM):

   • The device provides electrical isolation up to 4000V_RMS for 1 minute at 50/60Hz.

9. Operating Temperature (T_A):

   • The device can operate over a temperature range from -40°C to 100°C.

10. Junction Temperature (T_J):

    • The junction temperature should not exceed 125°C during operation to ensure reliable performance.

11. Mounting and Handling:

    • Handle the device with care to avoid mechanical stress or damage.
    • Ensure proper heat dissipation if operating at high currents or temperatures.

12. Storage:

    • Store the device in a dry, cool place to prevent moisture damage and degradation.

13. Testing:

    • Before installing the device, perform a visual inspection and basic electrical tests to ensure it meets the specified parameters.

By following these guidelines, you can ensure the reliable and efficient operation of the MOC3041M optocoupler.
