Description

BUY TLP3561 https://www.utsource.net/itm/p/817821.html

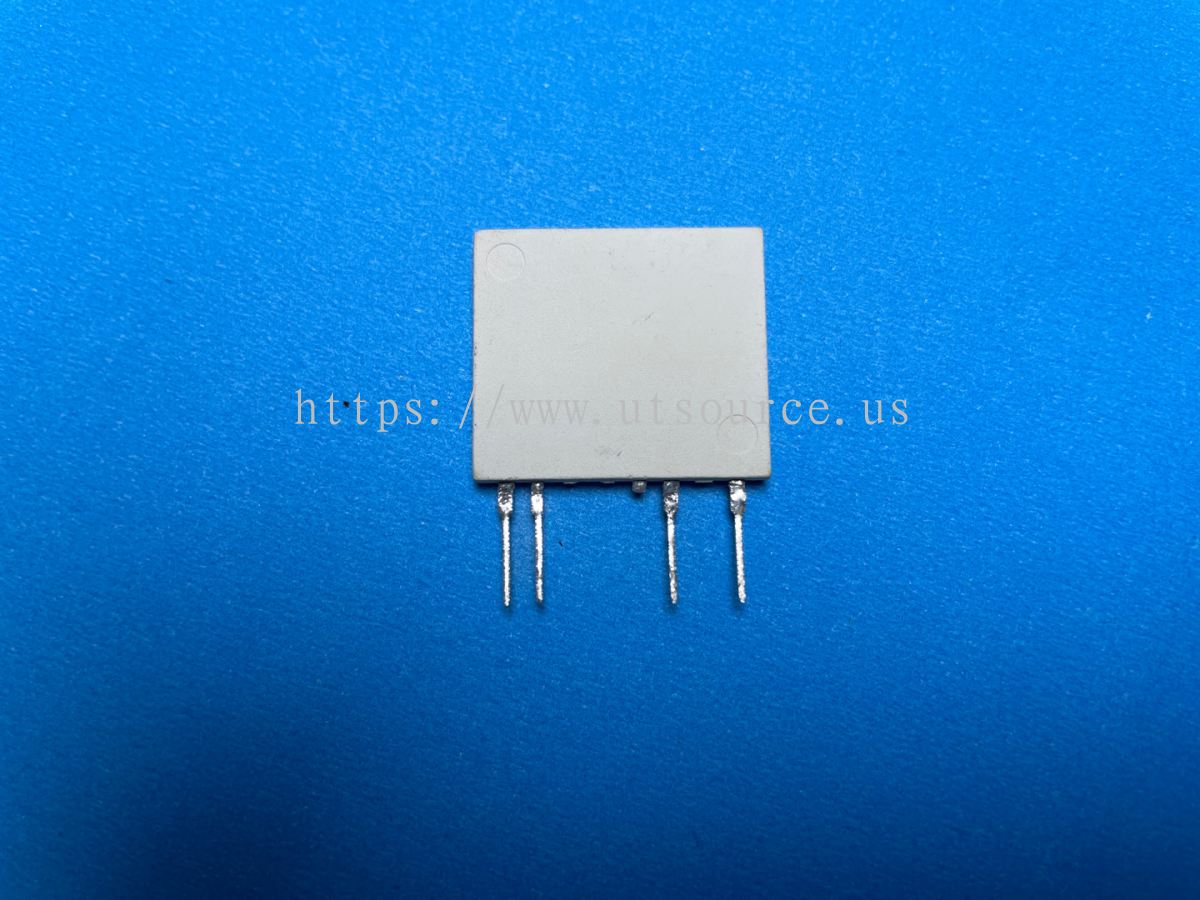

PHOTOCOUPLER GaAs LED + PHOTO-TRIAC + TRIAC

Parameter	Symbol	Min	Typ	Max	Unit	Conditions
Forward Voltage	V_F	-	1.2	1.5	V	IF = 20 mA, TA = 25°C
Reverse Breakdown Voltage	V_BR	5	-	7	V	IR = 1 mA, TA = 25°C
Output High Voltage	V_OH	2.4	3.5	4.5	V	IOH = -4 mA, VDD = 5 V, TA = 25°C
Output Low Voltage	V_OL	0	0.4	0.8	V	IOL = 16 mA, VSS = 0 V, TA = 25°C
Input Current	I_F	1	20	50	mA	V_F = 1.5 V, TA = 25°C
Propagation Delay Time	t_PLH, t_PHL	-	10	20	ns	VDD = 5 V, TA = 25°C, IF = 20 mA, RL = 500 Ω
Storage Temperature	T_STG	-40	-	105	°C	-
Operating Temperature	T_A	-40	-	85	°C	-

Power Supply:
- Ensure the power supply voltage (V_DD) is within the specified range to avoid damage to the device.
- Typical operating voltage is 5 V.
Input Current:
- The input current (I_F) should be within the specified range to ensure proper operation.
- A typical value is 20 mA.
Output Load:
- Connect the load resistor (R_L) appropriately to match the output current requirements.
- Ensure the load resistance is not too low to prevent excessive current draw.
Temperature Considerations:
- Operate the device within the specified temperature ranges to avoid thermal stress.
- The storage temperature range is -40°C to 105°C, and the operating temperature range is -40°C to 85°C.
Propagation Delay:
- Account for the propagation delay time (t_PLH, t_PHL) in your timing calculations to ensure accurate signal transmission.
- Typical values are around 10 ns with a maximum of 20 ns.
Handling Precautions:
- Handle the device with care to avoid static discharge, which can damage the internal components.
- Use appropriate ESD protection measures during handling and installation.
Mounting:
- Follow recommended PCB layout guidelines to ensure optimal performance and reliability.
- Ensure proper soldering and mounting techniques to avoid mechanical stress on the device.

(For reference only)
