Penerangan

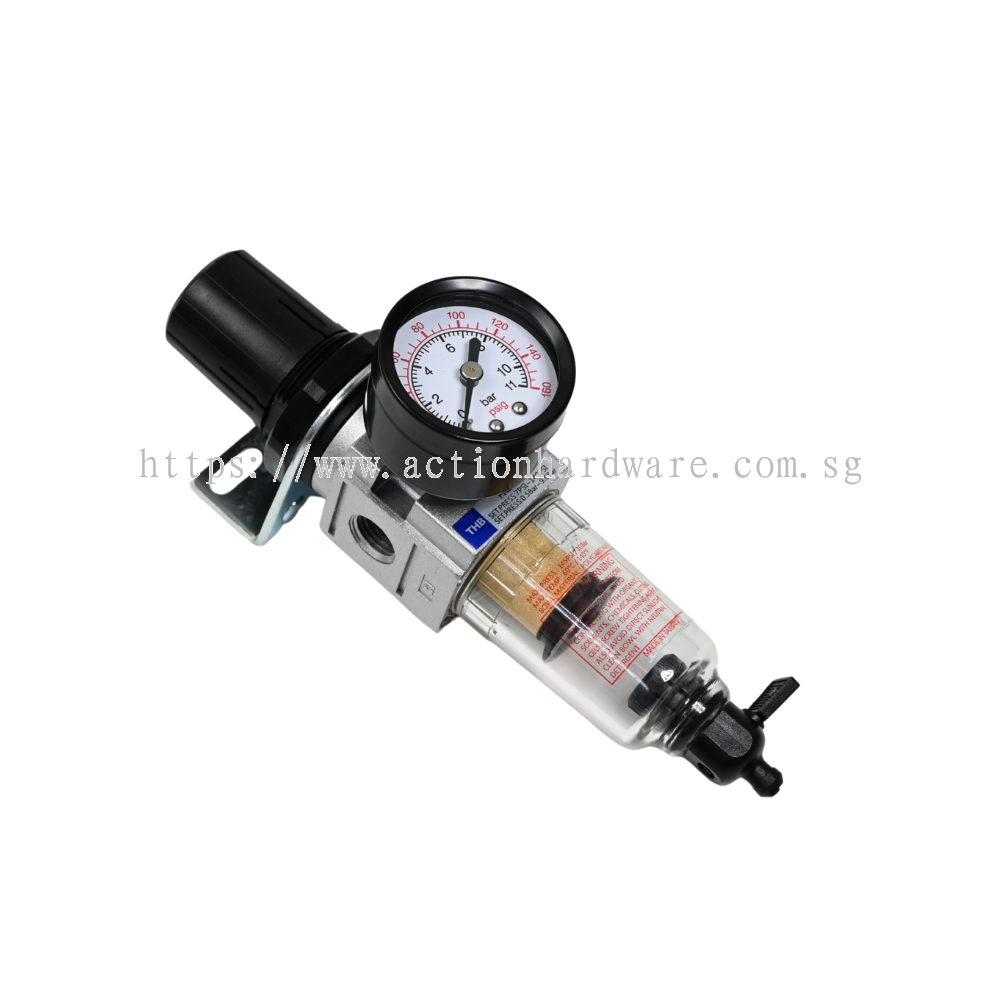

F=Filter ; R=Regulator ; L=Lubricator
- The flow rate is 5 drops or greater/min under the following conditions : Inlet pressure of 0.5 MPa; Class 1 turbine oil (ISO VG32); Temperature at 20°C; Oil adjustment valve fully open.
- For a circuit that repeatedly turns ON and OFF on the outlet side, make the adjustment so that the average air consumption per minute becomes the minimum dripping flow rate or more.
- Lubrication cannot be properly performed if the operating flow rate is too low. Select an appropriately size lubricator by referring to the minimum dripping flow rate provided in the catalog.
Meet The International Norms
- Air Filter : ISO 5782-1 & -2 / JIS B 8371
- Regulator : ISO 6953-1 & -2 / JIS B 8372
- Air Filter+Regulator : ISO 5782-1&-2 / ISO 6953-1&-2/ JIS B 8372 / JIS B 8371
- Lubricator : ISO 6301-1 & -2 / JIS B 8378
FEATURES :
- Compact design for limited space
- Easy installation
- Cost effective
