Torque Screwdriver
Tohnichi RNTDZ Torque Screwdriver
Tohnichi RNTDZ Torque Screwdriver

 3

Tohnichi RNTDZ Torque Screwdriver

MTM Precision Sdn Bhd flag
Category: Torque Screwdriver Available
For more information, visit our official website at mtmpre.com.my
Visit Official Site Contact Us
Description

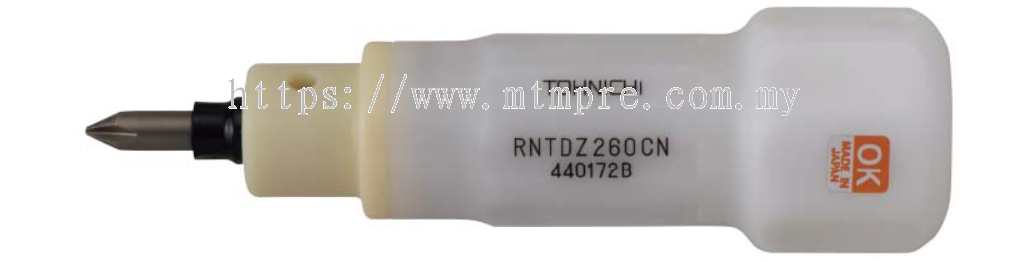

Tohnichi RNTDZ Torque Screwdriver


Suitable for work activities that require insulation work.

RNTDZ260CN [Overall length 126 mm]

RNTDZ500CN [Overall length 140 mm]

Body shape for rolling prevention



※The bit on the picture is optional.

Application

  • Electric motor vehicles, batteries, contamination prevention.

Features

  • Withstanding voltage AC1000V
  • Prevents electric shock accidents.
  • Same features as RTD except designed for tightening small screws.
  • When set torque value is achieved, rotary slip prevents over-torque.
  • Preset style is ideal for applications which requires the same torque value on the line.
  • Octagon-shaped body prevents driver from rolling.

Specifications

Accuracy ± 3%
MODEL RNTDZ260CN RNTDZ500CN
RANGE［cN0鹠］ MIN.～MAX. 100～260 200～500
RANGE［kgf0鹀m］ MIN.～MAX. 10～26 20～50
RANGE［lbf0鹖n］ MIN.～MAX. 10～22 20～40
APPLICABLE SCREW SMALL SCREW M4（M4.5） M4
TAPPING SCREW M5,M6 （M4.5）
Dimension [mm] BODY L1 120 134
OVERALL LENGTH L2 126 140
BODY L3 10 15
GRIP W1 32 33.5
W2 40 47.5
BODY D1 42 50
D2 5 6
D3 12
D4 23 26
D5 30.5 33
WEIGHT [Kg] 0.24 0.34

Dimensions

Expand dimensions

RNTDZ
